Rear Crossmember Component Removal Note

WARNING:
  • Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.
  1. Support the rear crossmember with the jack and remove the nuts.

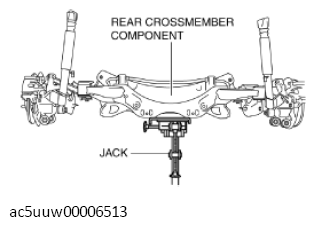

    Fig 1: Supporting Rear Crossmember With Jack
    G11428830Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear crossmember component.
