Front Suspension Location Index

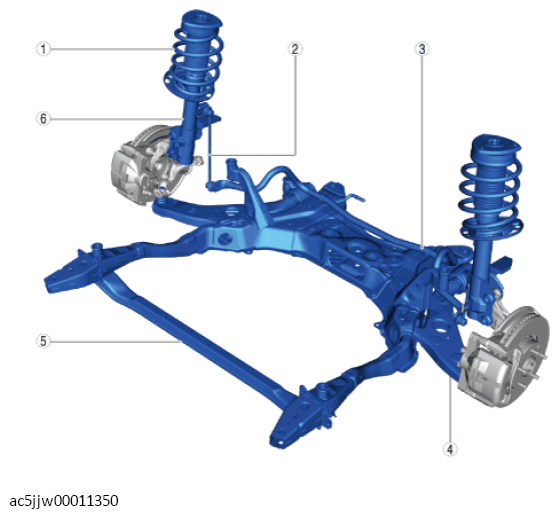

Fig 1: Front Suspension Components Location

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Front shock absorber and coil spring (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .) (See FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY .)
2	Front stabilizer control link (See FRONT STABILIZER REMOVAL/INSTALLATION .) (See FRONT STABILIZER CONTROL LINK INSPECTION .)
3	Front stabilizer (See FRONT STABILIZER REMOVAL/INSTALLATION .)
4	Front lower arm (See FRONT LOWER ARM REMOVAL/INSTALLATION .) (See FRONT LOWER ARM INSPECTION .)
5	Front crossmember (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
6	Front shock absorber (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .) (See FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY .) (See FRONT SHOCK ABSORBER INSPECTION .) (See FRONT SHOCK ABSORBER DISPOSAL .)
