Front Lower Arm Bushing Removal Note

  1. Remove the front lower arm bushing using the SSTs and the press.

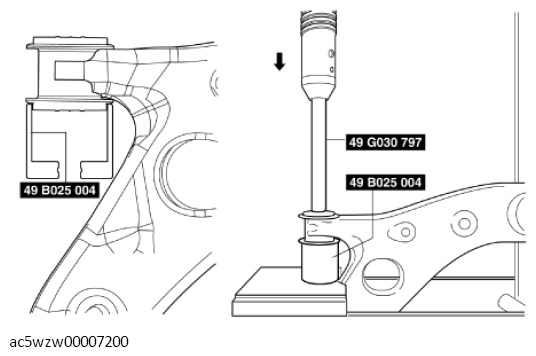

    Fig 1: Removing Front Lower Arm Bushing Using SST And Press
    G11428789Courtesy of MAZDA
  2. Wipe off any dirt of oil on the front lower arm bushing installation area.
