Front Lower Arm Ball Joint Installation Note

  1. Install the spacer to the steering knuckle before installing the front lower arm ball joint.

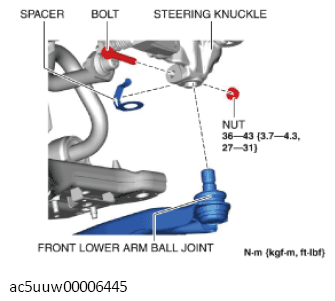

    Fig 1: Installing Spacer To Steering Knuckle
    G11428792Courtesy of MAZDA
  2. Insert the bolt from the front of the vehicle and tighten the nut to the specified torque.
