No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note

CAUTION:

When installing the front crossmember component to the vehicle, assemble the dust cover to the body-side installation area correctly to prevent water or foreign material from penetrating. Install the dust cover carefully so as not to pinch the dust cover sponge to the body-side installation area or put a fold line on the sponge by contact.

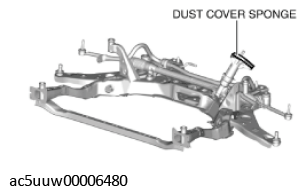

Fig 1: Dust Cover Sponge

G11428782

Courtesy of MAZDA

Temporarily tighten bolt A shown in the figure.

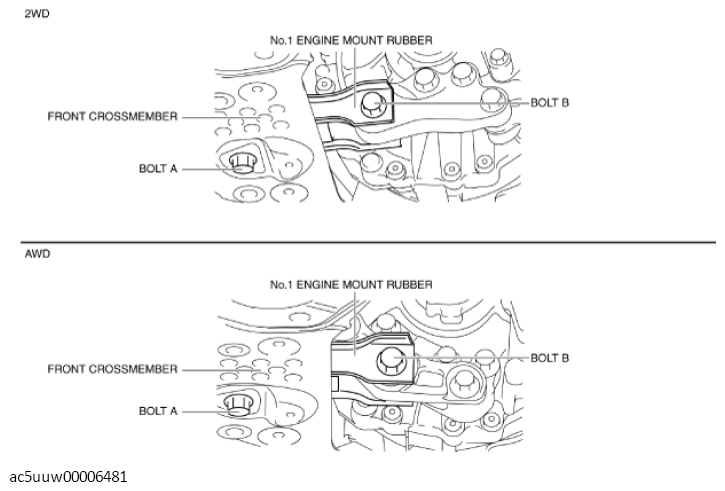

Fig 2: Engine Mount Rubber No 1, Front Cross Member And Bolts (2WD And AWD)
Courtesy of MAZDA
Temporarily tighten bolt B shown in the figure.
Tighten bolt A.
Tightening torque

141-172 N.m {15-17 kgf.m, 104-126 ft.lbf}
Tighten bolt B.
Tightening torque

130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
