Without Steering Warmer System
WARNING:
- Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Remove the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
- Remove the steering wheel bezel. (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

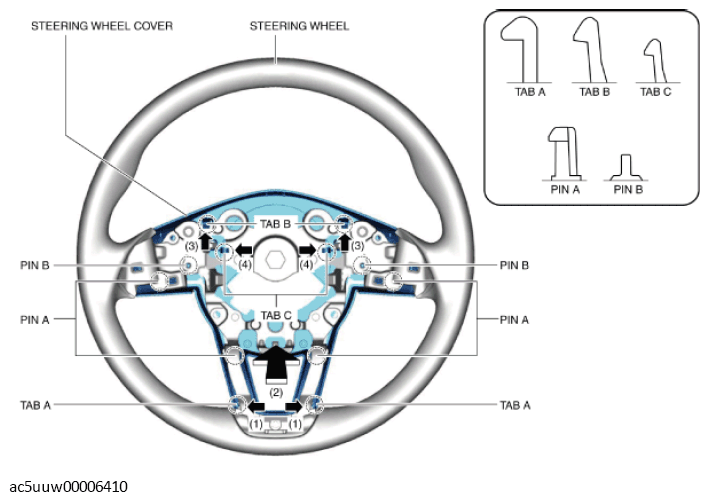

- While pressing tabs A in the directions of arrows (1) shown in the figure, press the steering wheel cover in the direction of arrow (2) to detach tabs A from the steering wheel.
- While pressing tabs B and C in the directions of arrows (3) and (4) shown in the figure, press the steering wheel cover in the direction of arrow (2) to detach tabs B and C, and pins A from the steering wheel.
- Remove the steering wheel cover from the steering wheel while pulling pins B out.
- Install in the reverse order of removal.
