Steering Wheel Bezel Installation Note

  1. Assemble the steering wheel bezel tabs A and B, and the pin to the steering wheel in the order shown in the figure.

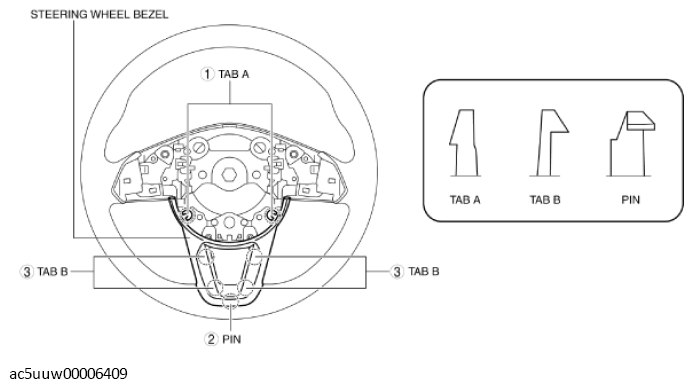

Fig 1: Steering Wheel Bezel, Tabs And Pin
G11428745Courtesy of MAZDA MOTORS CORP.
