Steering Gear and Linkage Removal Note

  1. Remove the steering gear and linkage installation bolts, move the steering gear and linkage in the direction and order of the arrows shown in the figure, and then remove it.

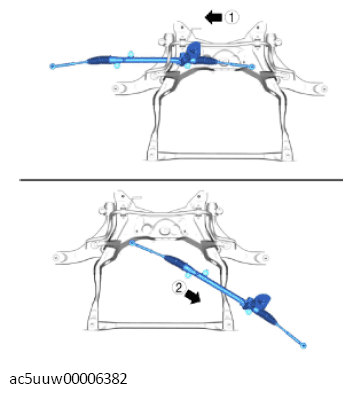

Fig 1: Moving Steering Gear And Linkage
G11428723Courtesy of MAZDA MOTORS CORP.
