Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
On-Board Diagnostic - Steering
>>
Electric Power Steering (EPS) System Wiring Diagram [Electric Power Steering (EPS)]
Electric Power Steering (EPS) System Wiring Diagram [Electric Power Steering (EPS)]

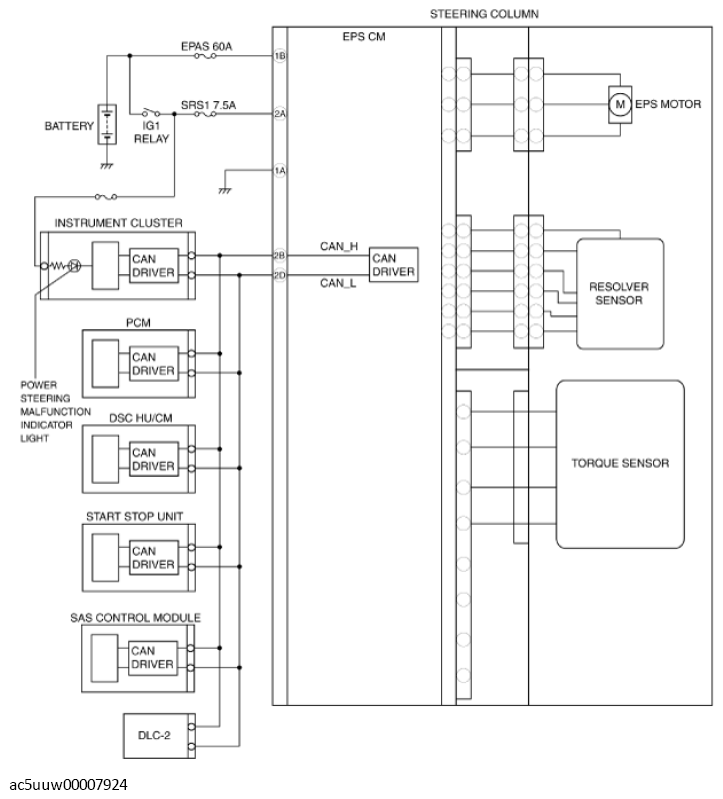

Fig 1: Electric Power Steering System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
