Rear Center Seat Belt Installation Note

  1. After installing the rear seat cushion, place the rear center seat belt as shown in the figure.

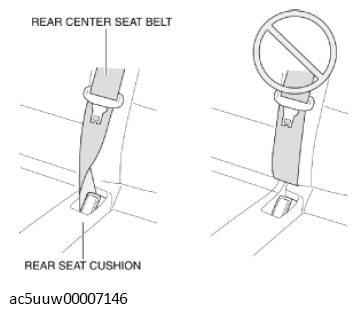

    Fig 1: Rear Seat Cushion And Rear Center Seat Belt
    G11428675Courtesy of MAZDA MOTORS CORP.
