DTC B1417:11/B1417:12/B1417:29/B1417:2B/B1417:4A/B1417:87/B1417:96 [SAS Control Module (Two-Step Deployment Control System - Us/CANADA Spec.)]: Notes
DTC B1417:11/B1417:12/B1417:29/B1417:2B/B1417:4A/B1417:87/B1417:96 [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)] - DETECTION CONDITION & POSSIBLE CAUSE
| System malfunction location |
- B1417:11: Passenger-side crash zone sensor circuit short to body ground
- B1417:12: Passenger-side crash zone sensor circuit short to power supply
- B1417:29, B1417:96: Passenger-side crash zone sensor internal malfunction
- B1417:2B: Short circuit to passenger-side crash zone sensor and other air bag sensor circuits
- B1417:4A: Passenger-side crash zone sensor ID error (assembly incorrect)
- B1417:87: Signal reception error from passenger-side crash zone sensor
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Wiring harness between the passenger-side crash zone sensor and SAS control module has a malfunction
- Passenger-side crash zone sensor has a malfunction
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Driver-side crash zone sensor assembly incorrect

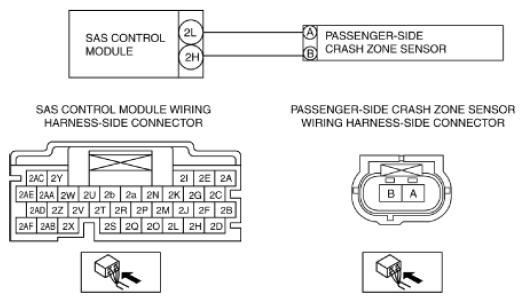

- Open circuit in the wiring harness between the following terminals:
- SAS control module terminal 2L-passenger-side crash zone sensor terminal A
- SAS control module terminal 2H-passenger-side crash zone sensor terminal B
- Short circuit to body ground in the wiring harness between the following terminals:
- SAS control module terminal 2L-passenger-side crash zone sensor terminal A
- SAS control module terminal 2H-passenger-side crash zone sensor terminal B
- Short circuit to power supply in the wiring harness between the following terminals:
- SAS control module terminal 2L-passenger-side crash zone sensor terminal A
- SAS control module terminal 2H-passenger-side crash zone sensor terminal B
- Short circuit to other air bag sensor circuits in the wiring harness between the passenger-side crash zone sensor and SAS control module
- Passenger-side crash zone sensor malfunction
- SAS control module malfunction
|
|
|
