DTC B1214:11/B1214:12/B1214:13/B1214:19/B1214:1A [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)] - DETECTION CONDITION & POSSIBLE CAUSE

49 N088 0A0 Fuel and thermometer checker

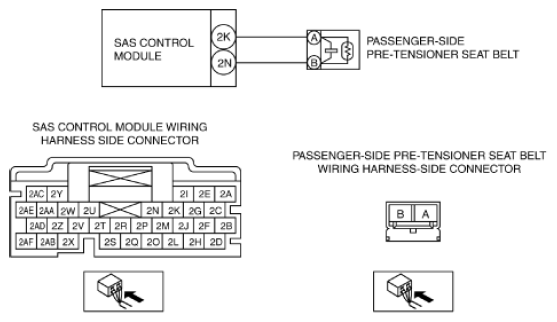

System malfunction location	B1214:11: Passenger-side pre-tensioner seat belt circuit short to body ground B1214:12: Passenger-side pre-tensioner seat belt circuit short to power supply B1214:13: Passenger-side pre-tensioner seat belt circuit open circuit or resistance high B1214:19: Short circuit to passenger-side pre-tensioner seat belt and other air bag module circuits B1214:1A: Passenger-side pre-tensioner seat belt circuit resistance low
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.88-6.33 ohms detected in passenger-side pre-tensioner seat belt circuit Wiring harness between the passenger-side pre-tensioner seat belt and SAS control module has a malfunction
Fail-safe function	Not applicable
Possible cause	Passenger-side pre-tensioner seat belt connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 2K-passenger-side pre-tensioner seat belt terminal A SAS control module terminal 2N-passenger-side pre-tensioner seat belt terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 2K-passenger-side pre-tensioner seat belt terminal A SAS control module terminal 2N-passenger-side pre-tensioner seat belt terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 2K-passenger-side pre-tensioner seat belt terminal A SAS control module terminal 2N-passenger-side pre-tensioner seat belt terminal B Short circuit to each other in the wiring harness between the passenger-side pre-tensioner seat belt and SAS control module Short circuit to other air bag module circuits in the wiring harness between the passenger-side pre-tensioner seat belt and SAS control module Passenger-side pre-tensioner seat belt malfunction SAS control module malfunction
