DTC B1128:11/B1128:12/B1128:13/B1128:19/B1128:1A [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)] - DETECTION CONDITION & POSSIBLE CAUSE

49 N088 0A0 Fuel and thermometer checker

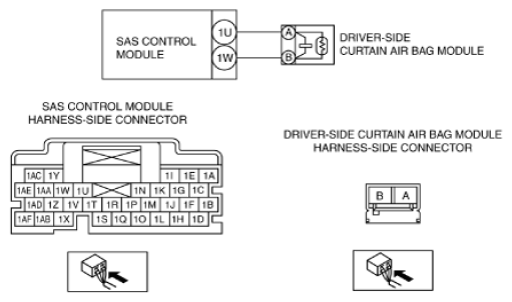

System malfunction location	B1128:11:Driver-side curtain air bag module circuit short to body ground B1128:12:Driver-side curtain air bag module circuit short to power supply B1128:13:Driver-side curtain air bag module circuit open circuit or resistance high B1128:19:Short circuit to driver-side curtain air bag module and other air bag module circuits B1128:1A:Driver-side curtain air bag module circuit resistance low
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.88-6.33 ohms detected in driver-side curtain air bag module circuit Wiring harness between the driver-side curtain air bag module and SAS control module has a malfunction
Fail-safe	Not applicable
Possible cause	Driver-side curtain air bag module connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 1U-driver-side curtain air bag module terminal A SAS control module terminal 1W-driver-side curtain air bag module terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 1U-driver-side curtain air bag module terminal A SAS control module terminal 1W-driver-side curtain air bag module terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 1U-driver-side curtain air bag module terminal A SAS control module terminal 1W-driver-side curtain air bag module terminal B Short circuit to each other in the wiring harness between the driver-side curtain air bag module and SAS control module Short circuit to other air bag module circuits in the wiring harness between the driver-side curtain air bag module and SAS control module Driver-side curtain air bag module malfunction SAS control module malfunction
