DTC B0010:11/B0010:12/B0010:13/B0010:19/B0010:1A [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)] - DETECTION CONDITION & POSSIBLE CAUSE

49 N088 0A0 Fuel and thermometer checker

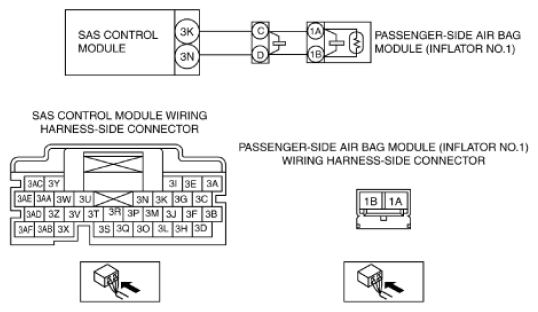

System malfunction location	B0010:11: Passenger-side air bag module (inflator No. 1) circuit short to body ground B0010:12: Passenger-side air bag module (inflator No. 1) circuit short to power supply B0010:13: Passenger-side air bag module (inflator No. 1) circuit open circuit or resistance high B0010:19: Short circuit to passenger-side air bag module (inflator No. 1) and other air bag module circuits B0010:1A: Passenger-side air bag module (inflator No. 1) circuit resistance low
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.88-6.33 ohms detected in passenger-side air bag module (inflator No. 1) circuit Wiring harness between passenger-side air bag module (inflator No. 1) and SAS control module has malfunction
Fail-safe function	Not applicable
Possible cause	Passenger-side air bag module (inflator No. 1) connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 3K-passenger-side air bag module (inflator No. 1) terminal 1A SAS control module terminal 3N-passenger-side air bag module (inflator No. 1) terminal 1B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 3K-passenger-side air bag module (inflator No. 1) terminal 1A SAS control module terminal 3N-passenger-side air bag module (inflator No. 1) terminal 1B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 3K-passenger-side air bag module (inflator No. 1) terminal 1A SAS control module terminal 3N-passenger-side air bag module (inflator No. 1) terminal 1B Short circuit to each other in the wiring harness between the passenger-side air bag module (inflator No. 1) and SAS control module Short circuit to other air bag module circuits in the wiring harness between the passenger-side air bag module (inflator No. 1) and SAS control module Passenger-side air bag module (inflator No. 1) malfunction SAS control module malfunction
