On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]
On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]

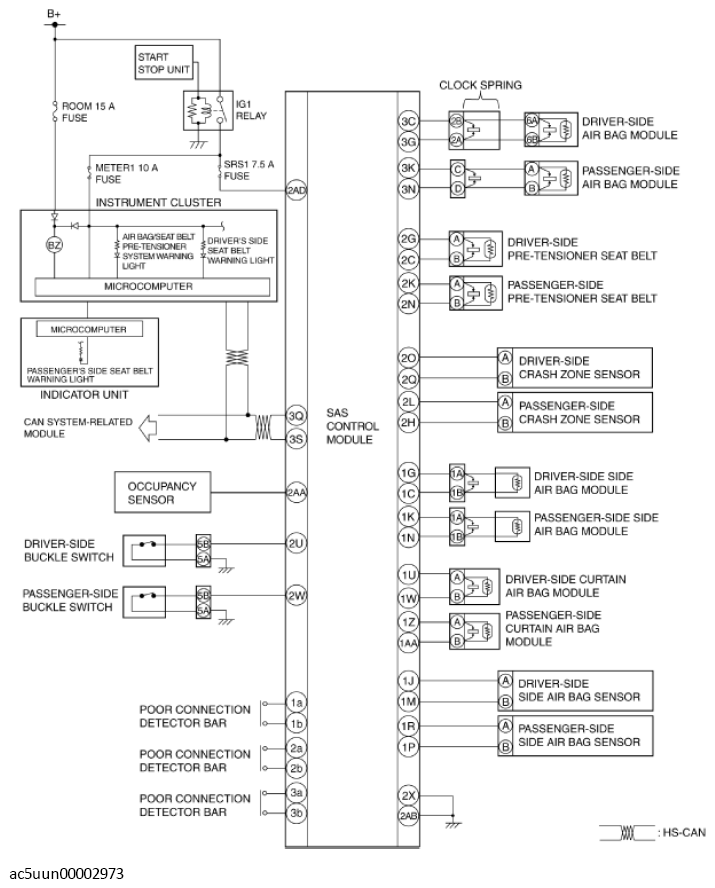

Fig 1: SAS Control Module On-Board Diagnostic Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

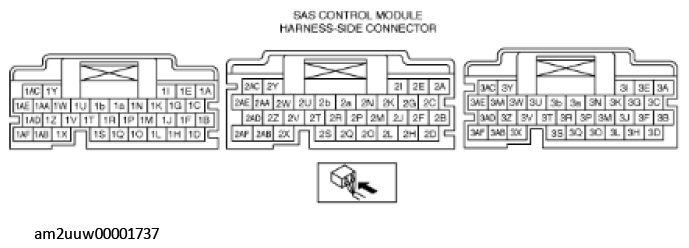

Fig 2: SAS Control Module Harness-Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
