Foreword [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]
>>
Troubleshooting Procedure
Troubleshooting Procedure

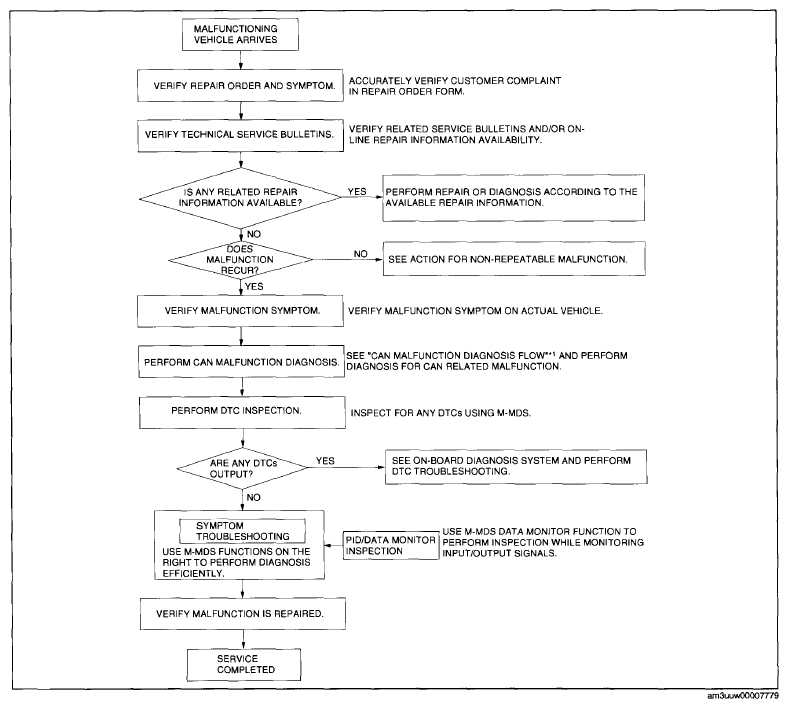

Fig 1: SAS Control Module Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
