DTC B10FD:11/B10FD:12/B10FD:29/B10FD:2B/B10FD:4A/B10FD:87/B10FD:96 [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]: Notes

DTC DETECTION DESCRIPTION

System malfunction location	B10FD:11: Driver-side side air bag sensor circuit short to body ground B10FD:12: Driver-side side air bag sensor circuit short to power supply B10FD:29, B10FD:96: Driver-side side air bag sensor internal malfunction B10FD:2B: Short circuit to driver-side side air bag sensor and other air bag sensor circuits B10FD:4A: Driver-side side air bag sensor ID error (assembly incorrect) B10FD:87: Signal reception error from driver-side side air bag sensor
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side side air bag sensor and SAS control module has a malfunction Driver-side side air bag sensor has a malfunction
Fail-safe function	Not applicable

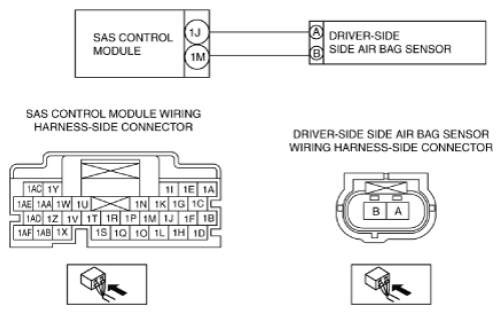

Possible cause	Driver-side side air bag sensor assembly incorrect Driver-side side air bag sensor connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 1J-driver-side side air bag sensor terminal A SAS control module terminal 1M-driver-side side air bag sensor terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 1J-driver-side side air bag sensor terminal A SAS control module terminal 1M-driver-side side air bag sensor terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 1J-driver-side side air bag sensor terminal A SAS control module terminal 1M-driver-side side air bag sensor terminal B Short circuit to other air bag sensor circuits in the wiring harness between the driver-side side air bag sensor and SAS control module Driver-side side air bag sensor malfunction SAS control module malfunction
