DTC B0094:11/B0094:12/B0094:29/B0094:2B/B0094:4A/B0094:87/B0094:96 [SAS Control Module (Standard Deployment Control System - MEXICO Spec.)]: Notes

DTC DETECTION DESCRIPTION

System malfunction location	B0094:11: Driver-side crash zone sensor circuit short to body ground B0094:12: Driver-side crash zone sensor circuit short to power supply B0094:29, B0094:96: Driver-side crash zone sensor internal malfunction B0094:2B: Short circuit to driver-side crash zone sensor and other air bag sensor circuits B0094:4A: Driver-side crash zone sensor ID error (assembly incorrect) B0094:87: Signal reception error from driver-side crash zone sensor
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side crash zone sensor and SAS control module has a malfunction Driver-side crash zone sensor has a malfunction
Fail-safe function	Not applicable

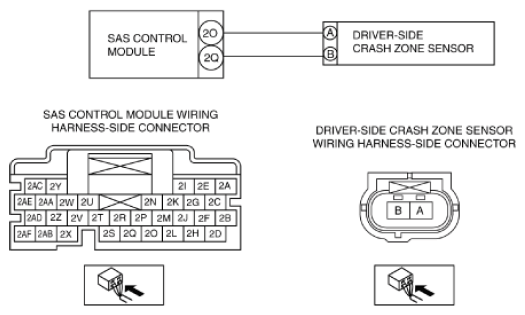

Possible cause	Driver-side crash zone sensor assembly incorrect Open circuit in the wiring harness between the following terminals: SAS control module terminal 2O-driver-side crash zone sensor terminal A SAS control module terminal 2Q-driver-side crash zone sensor terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 2O-driver-side crash zone sensor terminal A SAS control module terminal 2Q-driver-side crash zone sensor terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 2O-driver-side crash zone sensor terminal A SAS control module terminal 2Q-driver-side crash zone sensor terminal B Short circuit to other air bag sensor circuits in the wiring harness between the driver-side crash zone sensor and SAS control module Driver-side crash zone sensor malfunction SAS control module malfunction
