Fuel and thermometer checker |
|
| System malfunction location |
- B0001:11: Driver-side air bag module circuit short to body ground
- B0001:12: Driver-side air bag module circuit short to power supply
- B0001:13: Driver-side air bag module circuit open circuit or resistance high
- B0001:19: Short circuit to driver-side air bag module and other air bag module circuits
- B0001:1A: Driver-side air bag module circuit resistance low
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Resistance other than 1.37-6.33 ohms detected in driver-side air bag module circuit

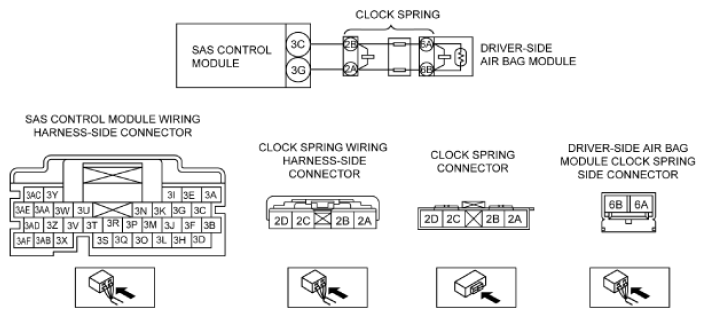

- Wiring harness between driver-side air bag module and SAS control module has malfunction
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Driver-side air bag module connector (clock spring side) malfunction
- Clock spring malfunction
- Open circuit in the wiring harness between the following terminals:
- Driver-side air bag module terminal 6A-Clock spring terminal 2B
- Driver-side air bag module terminal 6B-Clock spring terminal 2A
- SAS control module terminal 3C-Clock spring terminal 2B
- SAS control module terminal 3G-Clock spring terminal 2A
- Short circuit to body ground in the wiring harness between the following terminals:
- SAS control module terminal 3C-Clock spring terminal 2B
- SAS control module terminal 3G-Clock spring terminal 2A
- Short circuit to power supply in the wiring harness between the following terminals:
- SAS control module terminal 3C-Clock spring terminal 2B
- SAS control module terminal 3G-Clock spring terminal 2A
- Short circuit to each other in the wiring harness between the clock spring and SAS control module
- Short circuit to other air bag module circuits in the wiring harness between the clock spring and SAS control module
- Driver-side air bag module malfunction
- SAS control module malfunction
|
|
|
