Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Symptom Troubleshooting - Manual A/C
>>
Foreword [Manual Air Conditioner]
>>
Troubleshooting Procedure
Troubleshooting Procedure

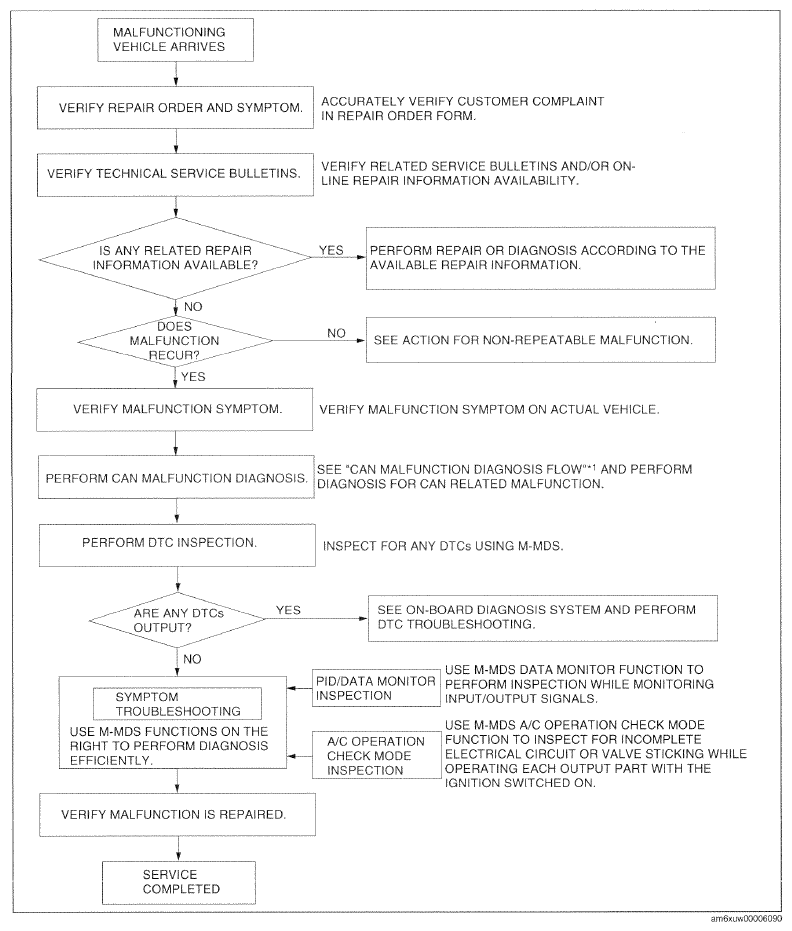

Fig 1: Manual Air Conditioner Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
Courtesy of MAZDA MOTORS CORP.
