HVAC System Wiring Diagram [Full-Auto Air Conditioner]

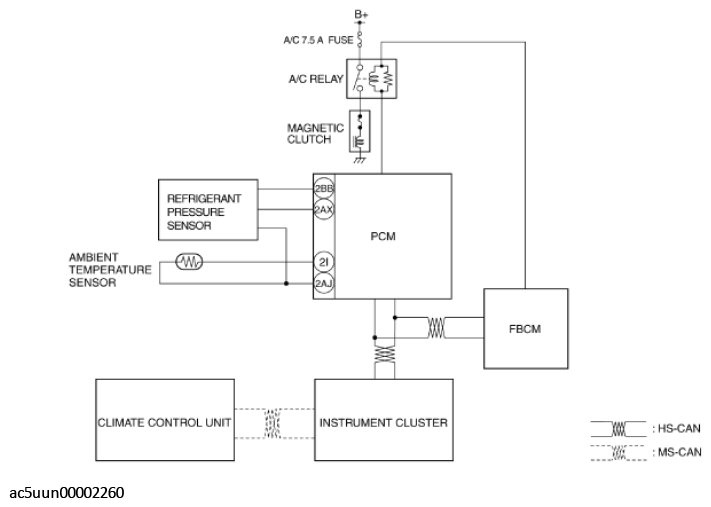

Fig 1: Climate Control Unit Circuit Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

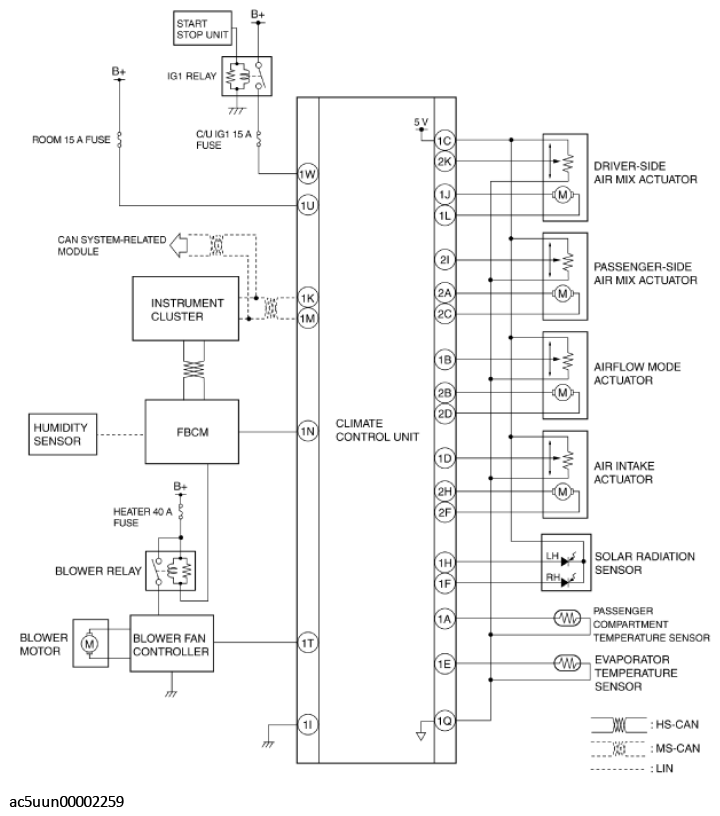

Fig 2: Climate Control Unit Circuit Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

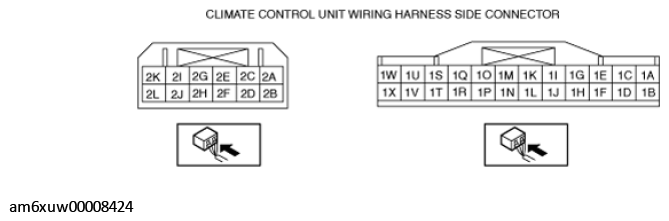

Fig 3: Climate Control Unit Wiring Harness Connector Terminals

Courtesy of MAZDA MOTORS CORP.
