HVAC Control Systems
>>
Symptom Troubleshooting - Auto A/C
>>
Foreword [Full-Auto Air Conditioner]
>>
Troubleshooting Procedure
Troubleshooting Procedure

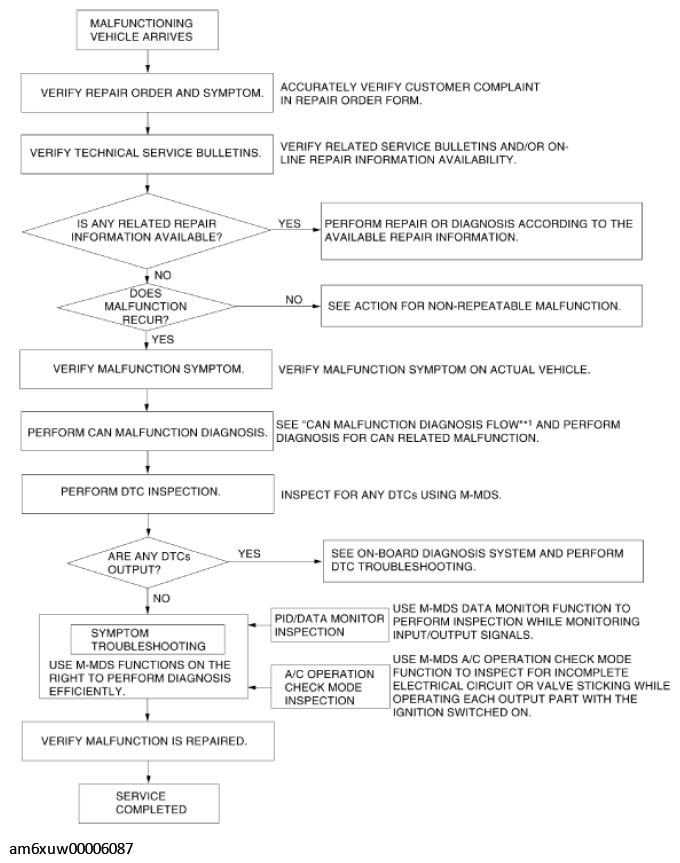

Fig 1: Full-Auto Air Conditioner Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
