Manifold Gauge Set Connection

  1. Fully close the valves of the manifold gauge.

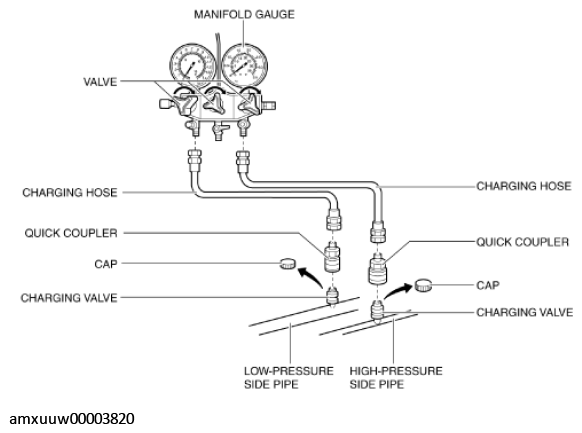

    Fig 1: Exploded View Of Manifold Gauge Set Connection
    G11276379Courtesy of MAZDA MOTORS CORP.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.
