On-Board Diagnostic System Wiring Diagram [Climate Control Unit (Manual Air Conditioner)]
On-Board Diagnostic System Wiring Diagram [Climate Control Unit (Manual Air Conditioner)]

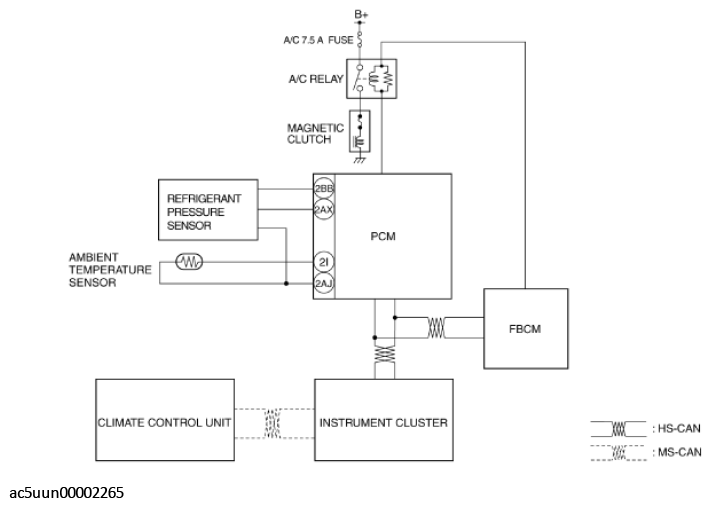

Fig 1: Climate Control Unit (Manual Air Conditioner) Circuit Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

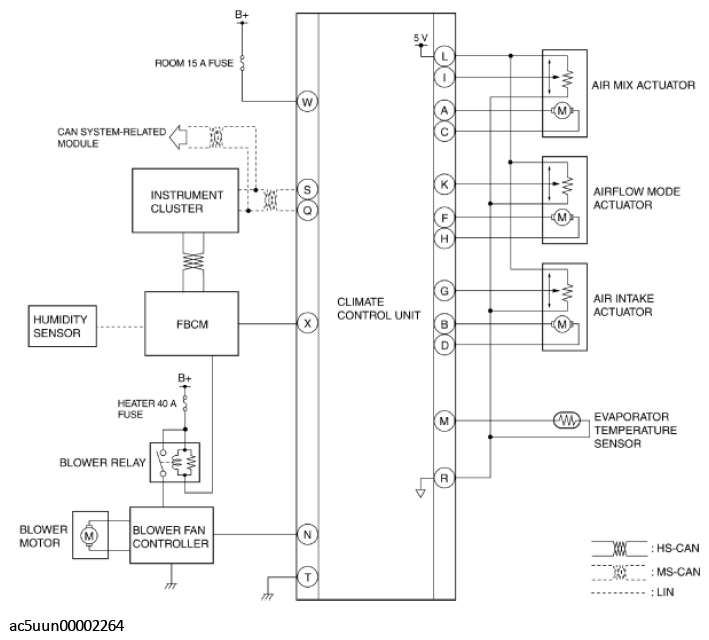

Fig 2: Climate Control Unit (Manual Air Conditioner) Circuit Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Climate Control Unit Wiring Harness Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
