DTC U300E-13; Climate Control Unit Power Supply Circuit Open (IG2): Notes

DTC DETECTION DESCRIPTION

System malfunction location	Climate control unit power supply circuit open (IG2)
Detection condition	Malfunction in wiring harness between climate control unit and front body control module (FBCM)
Fail-safe function	Not applicable

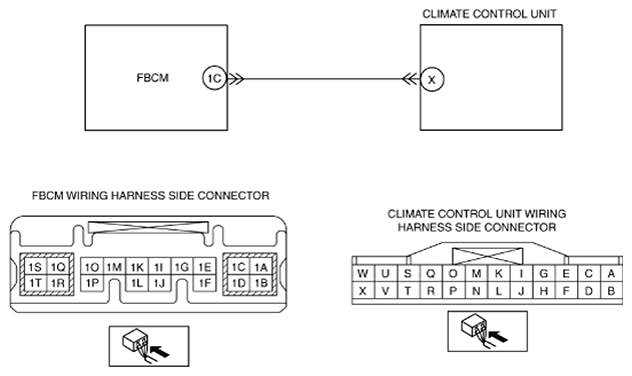

Possible cause	Climate control unit connector malfunction Front body control module (FBCM) connector malfunction Open circuit in wiring harness between the following terminals: Climate control unit terminal X-front body control module (FBCM) terminal 1C Short to ground in wiring harness between the following terminals: Climate control unit terminal X-front body control module (FBCM) terminal 1C Climate control unit malfunction Front body control module (FBCM) malfunction
