DTC U200D-11; Climate Control Unit Circuit Short To Ground: Notes

DTC DETECTION DESCRIPTION

System malfunction location	Climate control unit circuit voltage (+5V) circuit short to ground
Detection condition	Malfunction in wiring harness between climate control unit circuit voltage (+5V) and each actuator
Fail-safe function	Not applicable

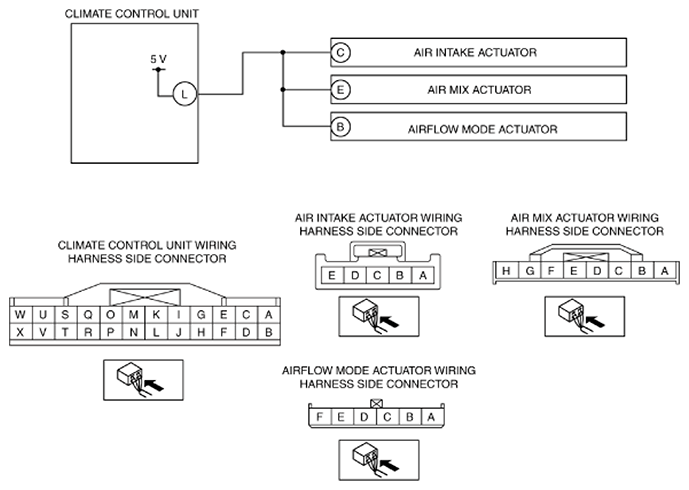

Possible cause	Connector or terminal malfunction Each actuator malfunction Short to ground in wiring harness between the following terminals: Climate control unit terminal L-air intake actuator terminal C Climate control unit terminal L-air mix actuator terminal E Climate control unit terminal L-airflow mode actuator terminal B Climate control unit malfunction
