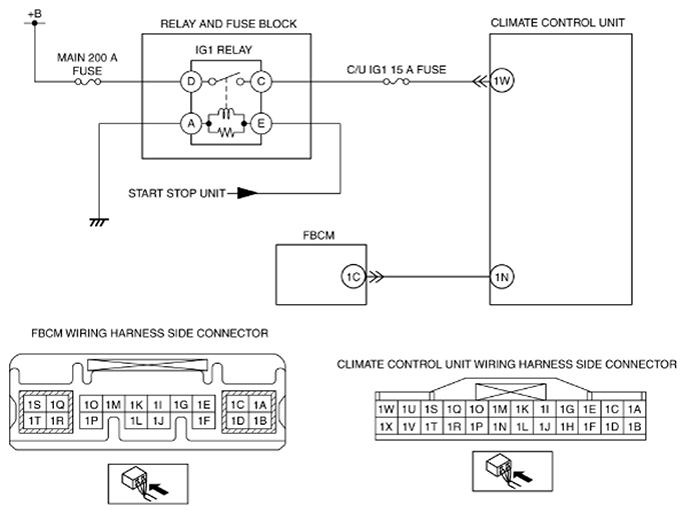

DTC U300E-13; Climate Control Unit Power Supply Circuit Open (IG1 Or IG2): Notes

DTC DETECTION DESCRIPTION

System malfunction location	Climate control unit power supply circuit open (IG1 or IG2)
Detection condition	Malfunction in wiring harness between climate control unit and IG1 relay Malfunction in wiring harness between climate control unit and front body control module (FBCM)
Fail-safe function	Not applicable
Possible cause	C/U IG1 15 A fuse malfunction IG1 relay malfunction Climate control unit connector malfunction Front body control module (FBCM) connector malfunction Open circuit in wiring harness between the following terminals: Climate control unit terminal 1W-MAIN 200 A fuse Climate control unit terminal 1N-front body control module (FBCM) terminal 1C Short to ground in wiring harness between the following terminals: Climate control unit terminal 1W-C/U IG1 15 A fuse Climate control unit terminal 1N-front body control module (FBCM) terminal 1C Climate control unit malfunction Front body control module (FBCM) malfunction
