Air Mix Actuator Removal/Installation (Auto A/C): Passenger-side

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

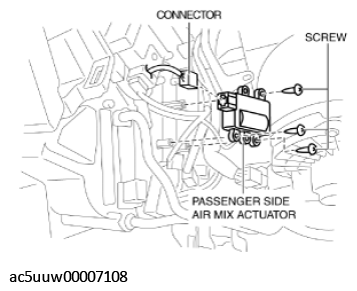

    Fig 1: Removing Air Mix Actuator (Passenger Side) With Screws
    G11431865Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the passenger-side air mix actuator.
  6. Install in the reverse order of removal.
