Air Mix Actuator Removal/Installation (Auto A/C): Driver-side

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

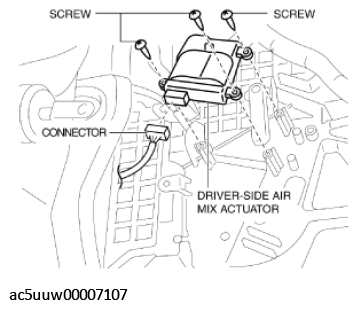

    Fig 1: Removing Air Mix Actuator (Driver Side) With Screws
    G11431864Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the driver-side air mix actuator.
  6. Install in the reverse order of removal.
