Air Intake Actuator Removal/Installation (Auto A/C)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

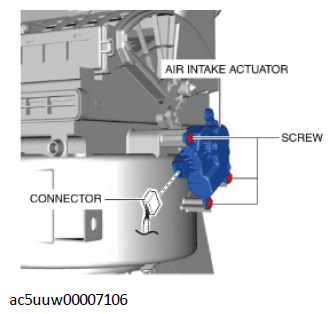

    Fig 1: Removing Connector From Air Intake Actuator
    G11431859Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the air intake actuator.
  6. Install in the reverse order of removal.
