Passenger's side

  1. Slide the front seat rearward.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the clip.

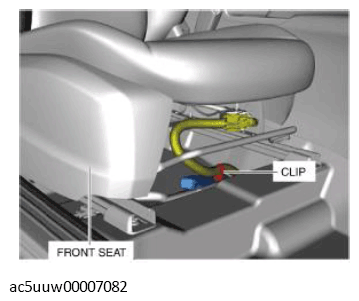

    Fig 1: Front Seat And Clip
    G11430266Courtesy of MAZDA MOTORS CORP.
  4. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  5. Turn the floor covering over.
  6. Remove the fastener.

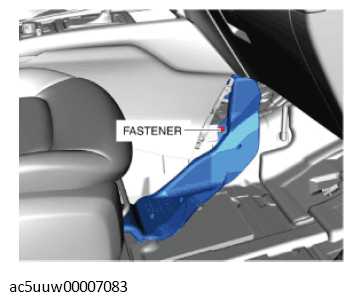

    Fig 2: Floor Covering Fastener
    G11430267Courtesy of MAZDA MOTORS CORP.
  7. Remove the passenger-side rear heat duct in the direction of the arrow shown in the figure.

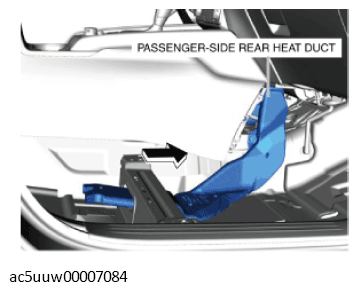

    Fig 3: Removing Passenger-Side Rear Heat Duct
    G11430268Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
