Heater Hose Removal/Installation

Replacement Part

Clip

Quantity: 2

Location of use: Heater hose

1. Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
4. Remove the nuts.

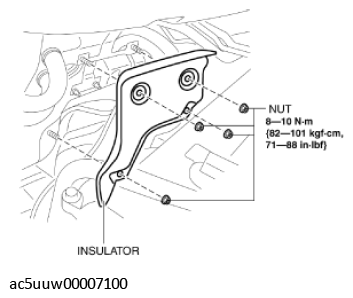

   Fig 1: Removing Nuts Of Insulator

   Courtesy of MAZDA MOTORS CORP.
5. Remove the insulator.
6. Remove the breather hose clip. (ATX)

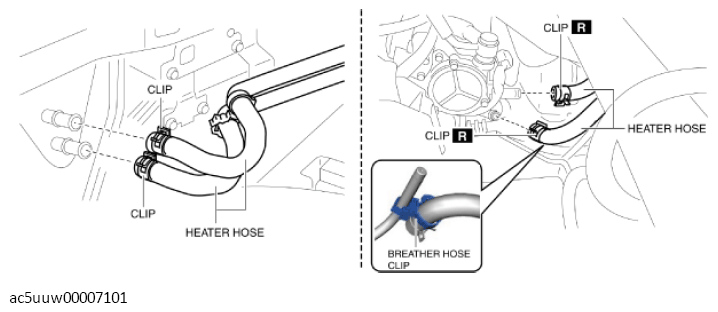

   Fig 2: Removing Breather Hose Clip (ATX) With Clips

   Courtesy of MAZDA MOTORS CORP.
7. Remove the heater hose.
8. Install in the reverse order of the removal.
9. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
