Passenger's side

  1. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

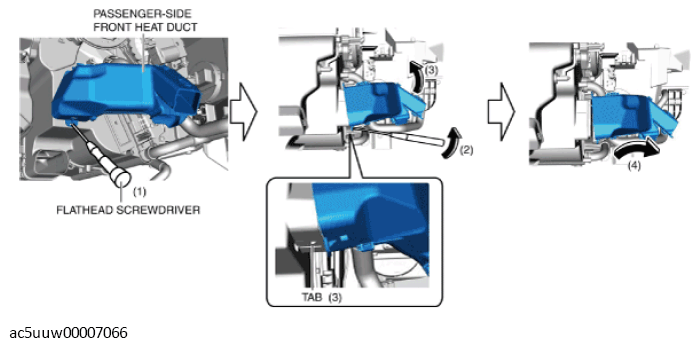

    Fig 1: Removing Dashboard Under Cover
    G11430239Courtesy of MAZDA MOTORS CORP.
  3. Detach the tab while lifting up the passenger-side front heat duct in the direction of the arrow (3).
  4. Remove the passenger-side front heat duct (4).
  5. Install in the reverse order of removal.
