Driver's side

  1. Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

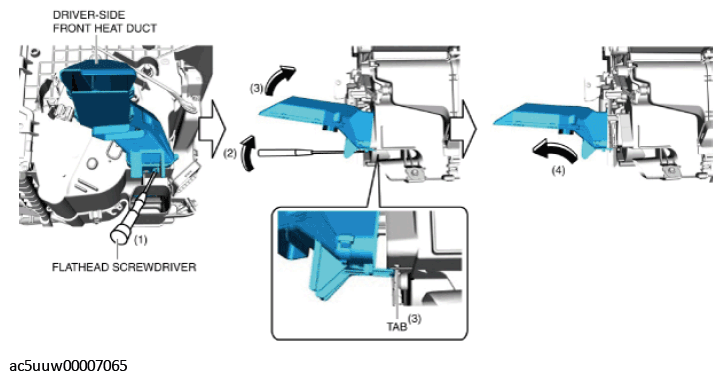

    Fig 1: Removing Front Heat Duct
    G11430238Courtesy of MAZDA MOTORS CORP.
  3. Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).
  4. Remove the driver-side front heat duct (4).
  5. Install in the reverse order of removal.
