Blower Motor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the blower motor connector.

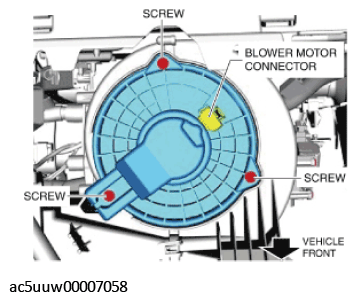

    Fig 1: Blower Motor Connector And Screws
    G11430228Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the blower motor.

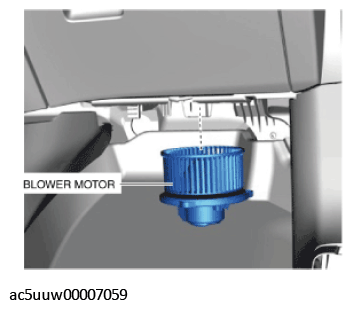

    Fig 2: Removing Blower Motor
    G11430229Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
