Blower Fan Controller Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the blower fan controller connector.

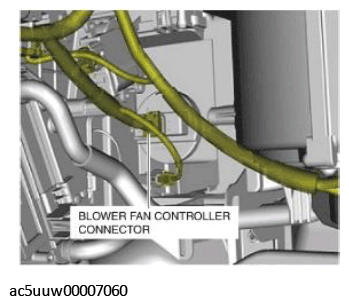

    Fig 1: Blower Fan Controller Connector
    G11430224Courtesy of MAZDA MOTORS CORP.
  4. Rotate the blower fan controller (2) while pressing the tab (1).

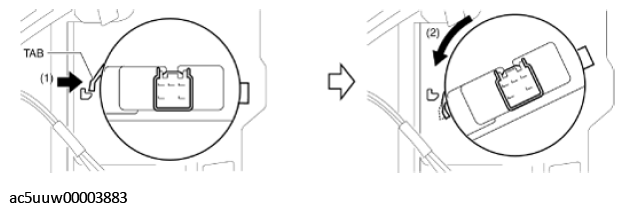

    Fig 2: Rotating Blower Fan Controller
    G11430225Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower fan controller.

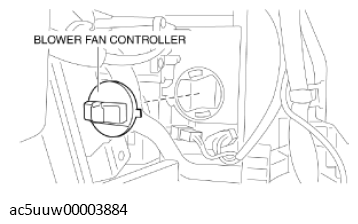

    Fig 3: Removing Blower Fan Controller
    G11430226Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
