Electronic AWD Control System Wiring Diagram [Electronic AWD Control System]
Electronic AWD Control System Wiring Diagram [Electronic AWD Control System]
WARNING:
This page is about a different variant/trim than selected.

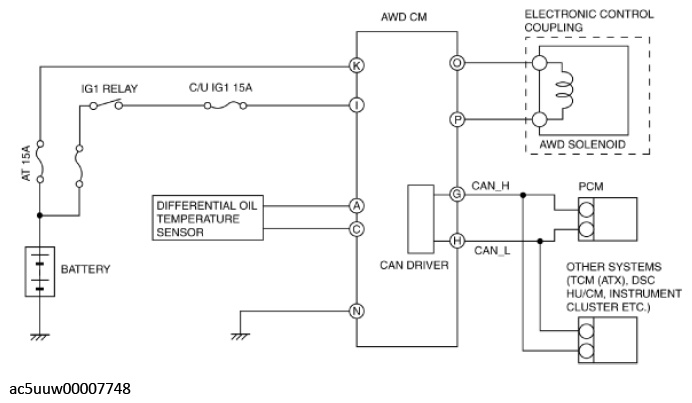

Fig 1: Electronic AWD Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
