DTC P1887-11; P1887-12; P1887-13; P1887-14; AWD Solenoid Circuits: Notes
WARNING: This page is about a different variant/trim than selected.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P1887:11 |
AWD solenoid circuit |
| DTC P1887:12 |
| DTC P1887:13 |
| DTC P1887:14 |
| DETECTION CONDITION |
- P1887:11
- Short circuit to ground is detected in AWD solenoid circuit
- P1887:12
- Short to battery is detected in AWD solenoid circuit
- P1887:13
- Open circuit is detected in AWD solenoid circuit
- P1887:14
- Open circuit or short to ground is detected in power supply circuit
|
| FAIL-SAFE FUNCTION |
- Control disabled.
- AWD warning light: Illuminated
|
| POSSIBLE CAUSE |
- AWD solenoid malfunction
- Open circuit or short to ground between AWD CM terminal O and AWD solenoid terminal A
- Open circuit or short to ground between AWD CM terminal P and AWD solenoid terminal B
- Open circuit or short to ground in harness between battery and AWD CM terminal K
- Open circuit between AWD CM terminal N and body ground
- Open or short circuit in AWD CM internal circuit
- AT (15A) fuse malfunction
- AWD CM malfunction
- Poor connection of connectors (female terminals)
|

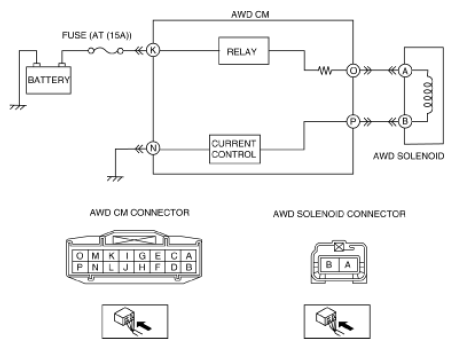

| SYSTEM WIRING DIAGRAM |
|
