Transfer oil seal (RH) No. 1

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver into the notch of the transfer and remove the oil seal (RH) No. 1.

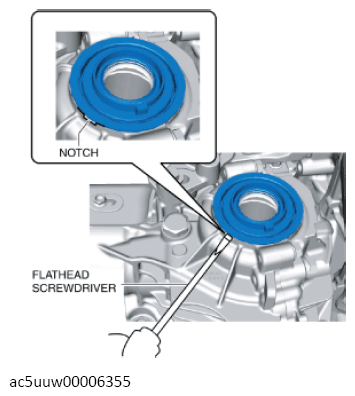

    Fig 1: Inserting Flathead Screwdriver Into Notch Of Transfer
    G11427296Courtesy of MAZDA MOTORS CORP.
  3. Install the new transfer oil seal (RH) No. 1 projection to within the range shown in the figure.

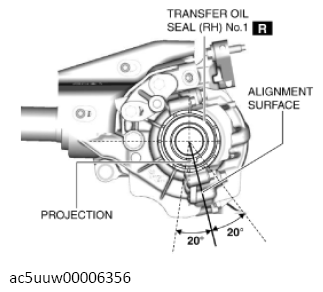

    Fig 2: Installing Transfer Oil Seal (RH) No. 1 Projection To With Range
    G11427297Courtesy of MAZDA MOTORS CORP.
  4. Using the SST and a hammer, tap the new seal into place.

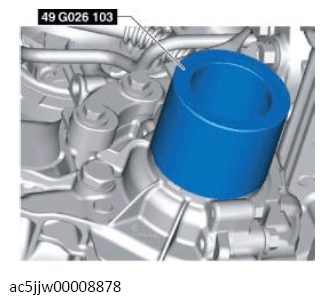

    Fig 3: Tapping Seal Into Place Using SST
    G11427298Courtesy of MAZDA MOTORS CORP.
  5. Coat the lip of the oil seal with transfer oil.
  6. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
