Rear Cover Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SSTs to the engine stand.
    Fig 1: Installing SST To Engine Stand
    G11427101Courtesy of MAZDA MOTORS CORP.
  2. Install the rear differential to the SSTs.

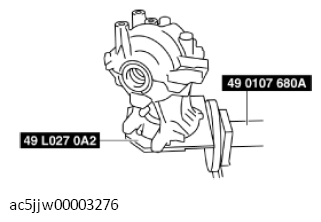

    Fig 2: Installing Rear Differential To SST
    G11427102Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear cover.
