Differential Oil Inspection

Replacement Part

Washer

Quantity: 1

Location of use: Filler plug

1. Place the vehicle on level ground.
2. Remove the filler plug and washer.
3. Verify that the oil is at the brim of the filler plug hole.
4. If it is low, add the specified oil.
5. Install a new washer and the filler plug, and tighten.

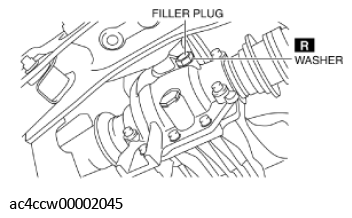

   Fig 1: Installing Washer And Filler Plug

   Courtesy of MAZDA MOTORS CORP.

   Tightening torque

   40-53 N.m {4.1-5.4 kgf.m, 30-39 ft.lbf}
