Stator removal/installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the magnetic clutch connector.

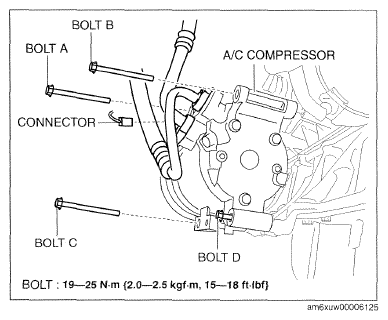

    Fig 1: Disconnecting Magnetic Clutch Connector
    G09786925Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts A, B and C.
  4. Loose bolt D approx. 2 mm {0.08 in}.
  5. Tilt the A/C compressor centered around bolt D.

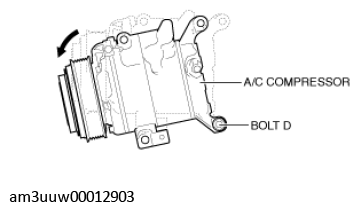

    Fig 2: Tilting A/C Compressor
    G11529273Courtesy of MAZDA MOTORS CORP.
  6. Remove the screw.

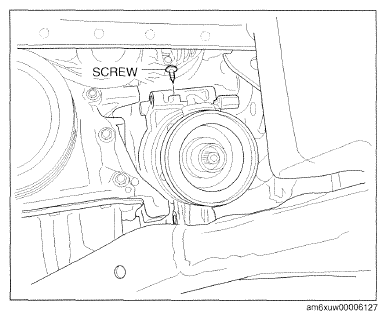

    Fig 3: Removing A/C Compressor Screw
    G09786927Courtesy of MAZDA MOTORS CORP.
  7. Remove the stator.

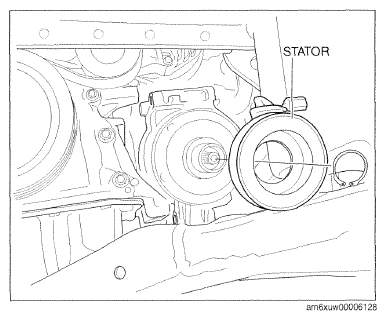

    Fig 4: Removing Stator
    G09786928Courtesy of MAZDA MOTORS CORP.
