Airflow mode main link installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.
  1. Align the airflow mode main link hole with the airflow mode sub link projection as shown in the figure.

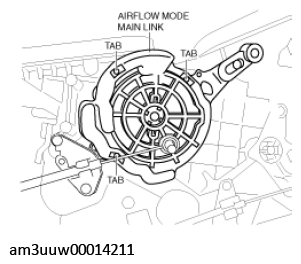

    Fig 1: Aligning Airflow Mode Main Link Hole With Airflow Mode Sub Link Projection
    G11529226Courtesy of MAZDA MOTORS CORP.
  2. Press the airflow mode main link lightly to the A/C unit, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.

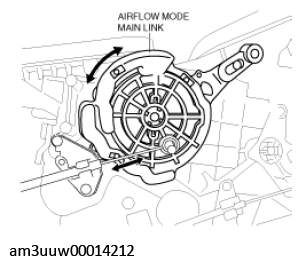

    Fig 2: Pressing Airflow Mode Main Link Lightly To A/C Unit
    G11529227Courtesy of MAZDA MOTORS CORP.
  3. Rotate airflow mode main link and verify that each mode is accessed properly.
