Manual Air Conditioner (With 23 Screws): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

Disassemble in the order indicated in the table.

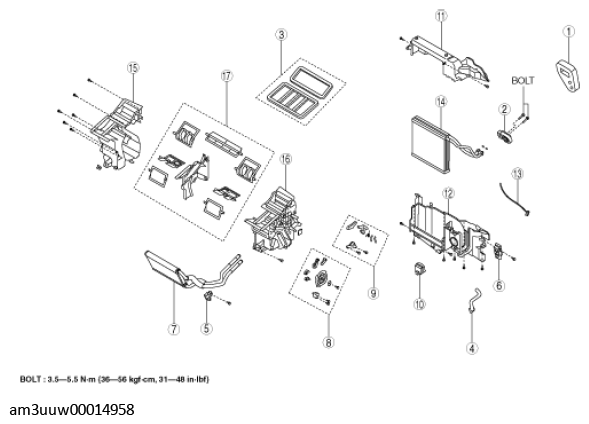

Fig 1: Exploded View Of Manual Air Conditioner With Torque Specification (With 23 Screws)

Courtesy of MAZDA MOTORS CORP.

X: Applicable-: Not applicable

Step	Part name	Disassembly/assembly of main parts
Step	Part name	Heater core	Evaporator temperature sensor	Evaporator
1	Polyurethane foam	X	X	X
2	Expansion valve	-	-	X
3	Adhesive polyurethane	-	-	-
4	Drain hose	-	-	-
5	Plate A	X	X	X
6	Plate B	X	X	X
7	Heater core	X	X	X
8	Airflow mode link set	X (wire clamp)	-	-
9	Air mix link	-	-	-
10	Blower fan controller	-	-	-
11	A/C case A	-	X	X
12	A/C case B	-	X	X
13	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .)	-	X	X
14	Evaporator	-	-	X
15	A/C case C	-	-	-
16	A/C case D	-	-	-
17	Door damper	-	-	-

Assemble in the reverse order of disassembly.
