Full-auto Air Conditioner (Without 27 Screws): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

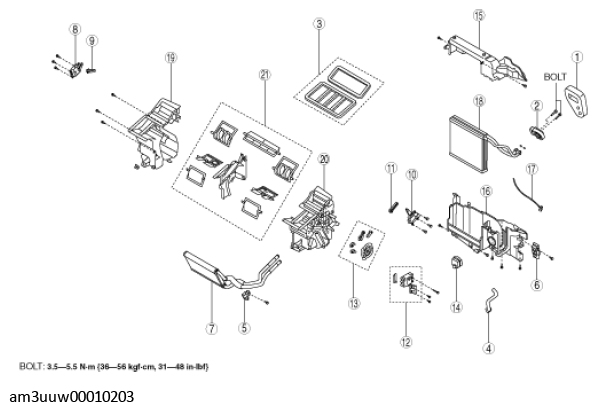

- Disassemble in the order indicated in the table.
X: Applicable-: Not applicable
Step Part name Disassembly/assembly of main parts Heater core Evaporator temperature sensor Evaporator 1 Polyurethane foam X - X 2 Expansion valve - - X 3 Adhesive polyurethane - - - 4 Drain hose - - - 5 Plate (1) X - - 6 Plate (2) X - - 7 Heater core X - - 8 Driver-side air mix actuator (with dual type climate control unit) - - - 9 Driver-side air mix link (with dual type climate control unit) - - - 10 Passenger-side air mix actuator (with dual type climate control unit) - - - Air mix actuator (with single type climate control unit) 11 Passenger-side air mix link (with dual type climate control unit) - - - Air mix link (with single type climate control unit) 12 Airflow mode actuator - - - 13 Airflow mode link set - - - 14 Blower fan controller - - - 15 A/C case (1) - X X 16 A/C case (2) - X X 17 Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .) - X X 18 Evaporator - - X 19 A/C case (3) 20 A/C case (4) - - - 21 Door damper - - - - Assemble in the reverse order of disassembly.
