Full-auto Air Conditioner (With 27 Screws): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
X: Applicable-: Not applicable

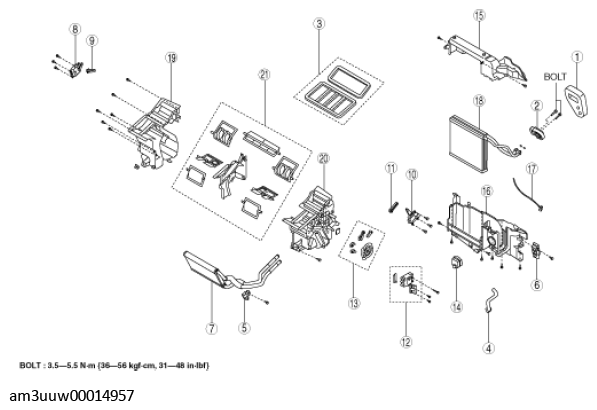

Step Part name Disassembly/assembly of main parts Heater core Evaporator temperature sensor Evaporator 1 Polyurethane foam X X X 2 Expansion valve - - X 3 Adhesive polyurethane - - - 4 Drain hose - - - 5 Plate A X X X 6 Plate B X X X 7 Heater core X X X 8 Driver-side air mix actuator (with dual type climate control unit) - - - 9 Driver-side air mix link (with dual type climate control unit) - - - 10 Passenger-side air mix actuator (with dual type climate control unit) - - - Air mix actuator (with single type climate control unit) 11 Passenger-side air mix link (with dual type climate control unit) - - - Air mix link (with single type climate control unit) 12 Airflow mode actuator - - - 13 Airflow mode link set - - - 14 Blower fan controller - - - 15 A/C case A - X X 16 A/C case B - X X 17 Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .) - X X 18 Evaporator - - X 19 A/C case C 20 A/C case D - - - 21 Door damper - - - - Assemble in the reverse order of disassembly.
