Rear Splash Shield

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

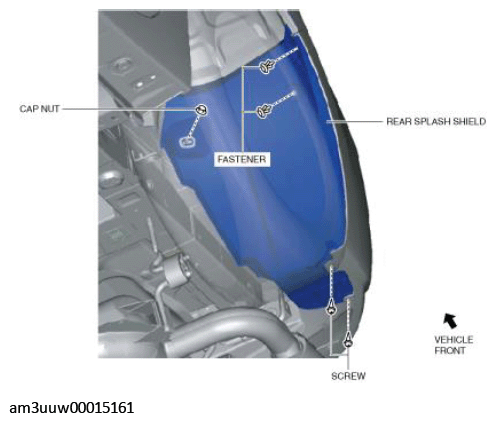

  1. Remove the screws, fasteners and cap nut shown the figure.
    Fig 1: Removing Cap Nut, Screw And Fastener From Rear Splash Shield
    G11448963Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear splash shield.
  3. Install in the reverse order of removal.
