Front Splash Shield No. 2

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fasteners and screw shown in the figure.

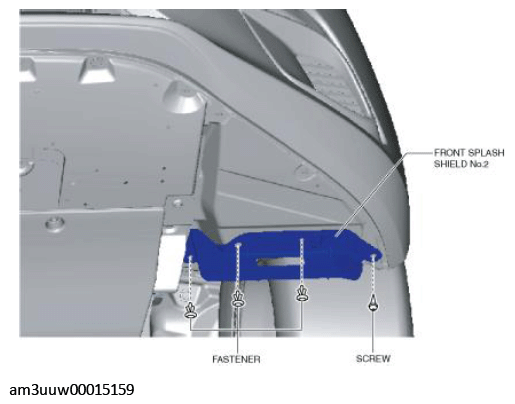

Fig 1: Removing Fastener And Screw From Front Splash Shield No. 2
Courtesy of MAZDA MOTORS CORP.
Remove the front splash shield No. 2 in the direction of the arrow shown in the figure while detaching the hooks.

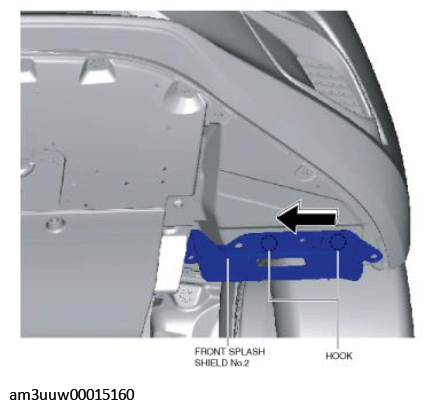

Fig 2: Moving Front Splash Shield No. 2
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
