Front Splash Shield No. 1

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fastener shown in the figure and slightly bend back the front mudguard.

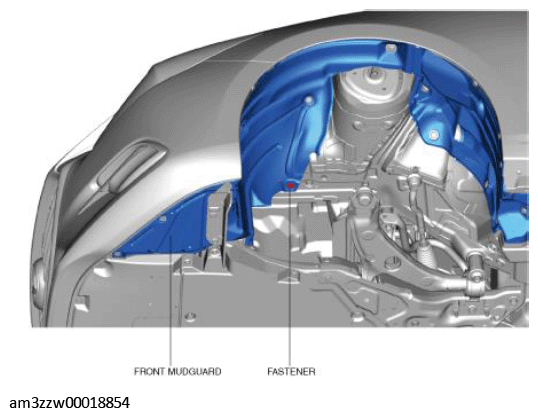

    Fig 1: Locating Splash Shield Fastener And Front Mudguard
    G11448959Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners shown in the figure.

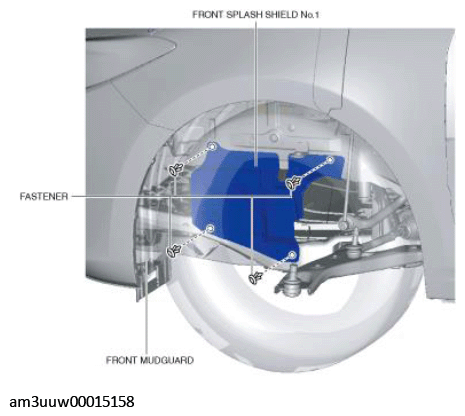

    Fig 2: Removing Splash Shield Fastener
    G11448960Courtesy of MAZDA MOTORS CORP.
  3. Remove the front splash shield No. 1.
  4. Install in the reverse order of removal.
