Rivet Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the following drill diameter. If an inappropriate drill diameter is used, the front bumper upper face and the radiator grille reinforcement may be damaged.
- Drill diameter: 4.1 mm {0.161 in} or less

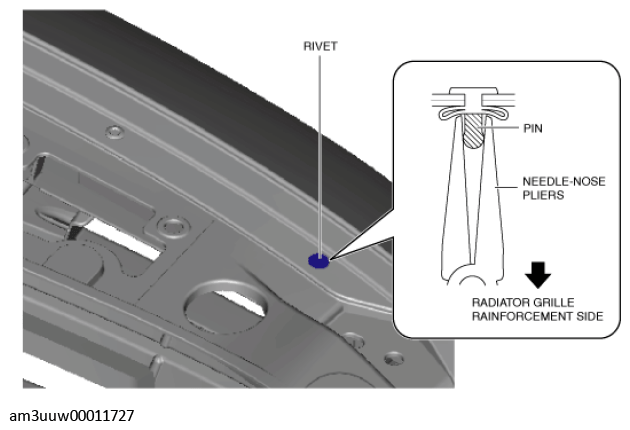

Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

Fig 1: Locating Rivet Pin From Radiator Grille Reinforcement
Courtesy of MAZDA MOTORS CORP.

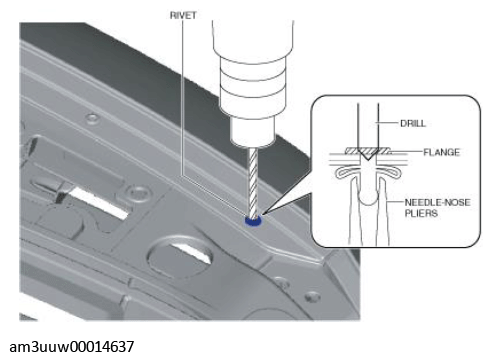

Remove the rivet flange using a drill and remove the rivet.

Fig 2: Removing Rivet Flange Using Drill
Courtesy of MAZDA MOTORS CORP.
Remove any rivet shavings from the front bumper upper face and the radiator grille reinforcement.
